CHARACTERISTICS

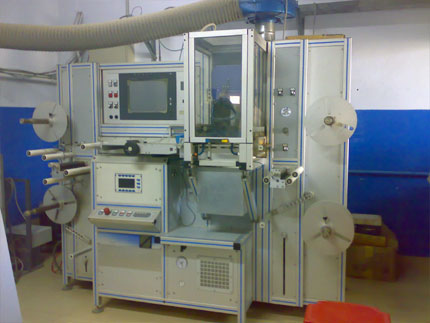

Automatic machine for the HIGH SPEED laser cut, die-cut, kiss cut and engraving of adhesive materials, paper, cardboard and any other material on rolls.

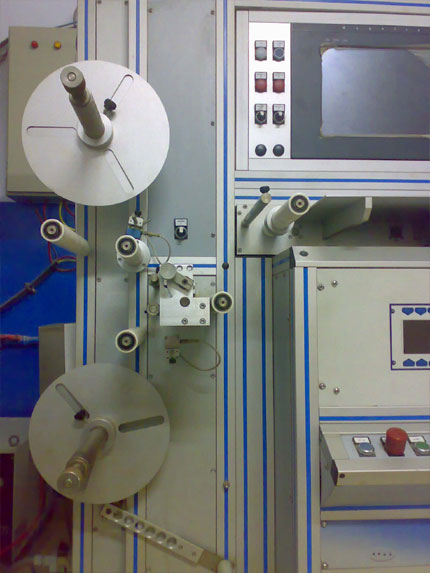

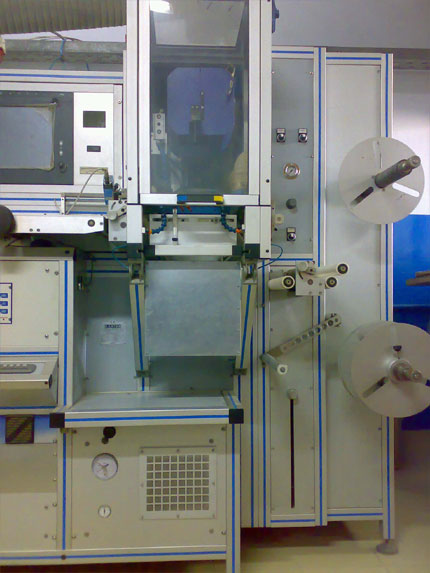

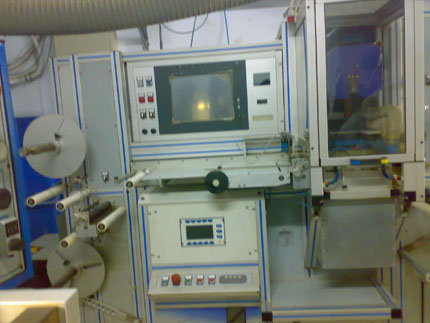

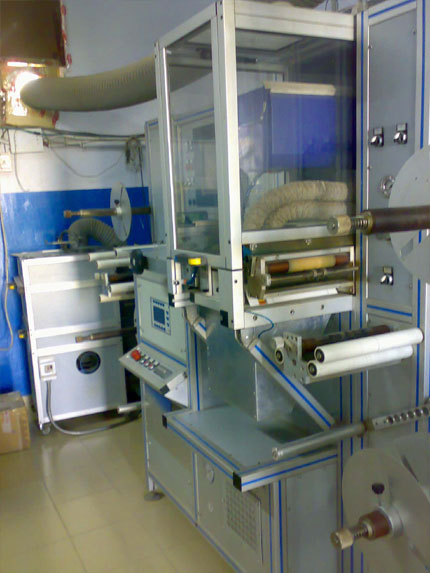

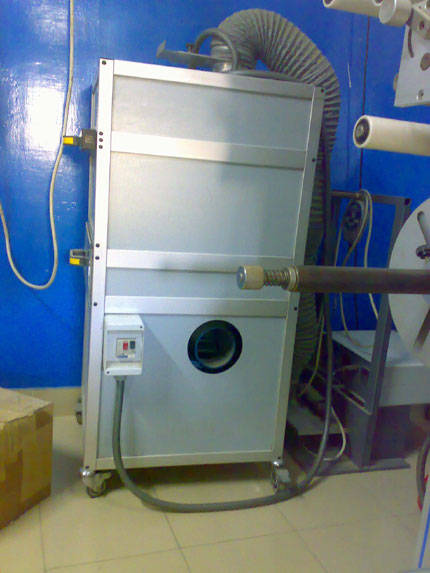

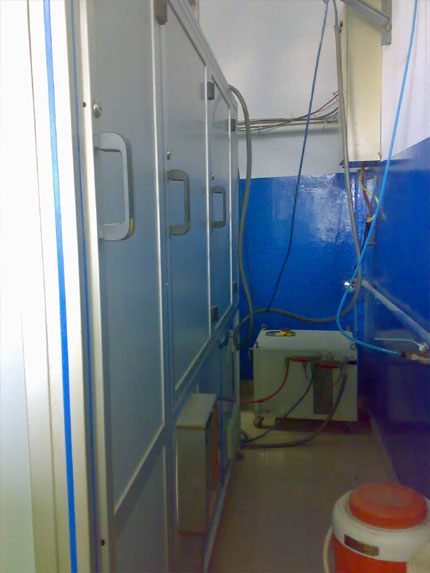

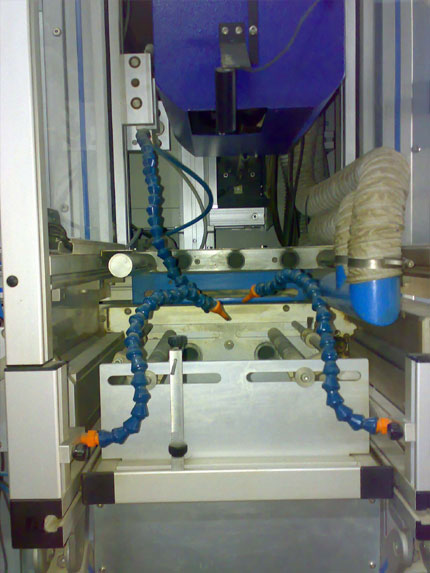

Web width 25 mm, laser power 100W Two unwinders for small rolls (max. weight kg 5-max. diameter 300 mm), with possiblity to stick self-adhesive tape, complete with machine automatic stop at ribbons end High sensibility photocell to register the material Laser die-cut unit for adhesive paper labels, provides for the cut or die-cut of materials on roll, complete with suction surface Galvanometric system with Dynamic-Z lens to focus the laser beam. The system grants for a precise cut up to 200/METRES PER MINUTE Water cooling system (chiller) to maintain the stability of the cutting power LPS (label positioning system): Innovative control sysem for precise positioning, both on the longitudinal and transversal axis (X-Y, of the label to be cut. The ribbon guide, moves transversally automatically, giving perfect centring and precision of the label to be cut Tension control device of the out coming ribbon PC to program and control all processing functions. It will store all processed proucts including: cutting profile, speed, laser beam power and will make easier to repeat previous cutting programs. The system provides for the possibility to manage 8 different beam power on the same label. L2NET pre-arrangement to connect the machine to the net Will allow to connect the machine directly with the design PC L2MODEM pre-arrangement to connect the machine to the net Complete with software fot eh modem service, allows to connect the machine with Cartes service dept. Rewinders for small rolls (max. weight kg 5 - max. diameter 300 mm) Aluminum protection structure. Plexiglas sliding door with safeties according with CE European norms for the laser unit TECHNICAL FEATURES Maximum ribbon width: 250 mm Maximum cutting speed: 200 metres per minute Cutting area: mm 250 x 250 Laser power: 100 Watt Laser source: Half sealed CO2 Average lifetime of the CO2 reserve (low cost and easy to find refill, not supplied with the machine): 100 Watt Main power supply: 4,000 hours Consumption: 380 Volt 3-phase 50/60 Hz Dimensions: 5 kW Weight:   DESCRIPTION L2VAR selectable working area for labels Possibility to select a different working area dimension from 250 x 250 mm to 100 x 100 mm L2CA pull-out cutting plan to process materials in sheets Used to cut or process materials in sheets, complete with suction to maintain the sheet in the correct position
