ADVANTAGES TO RAPIER LOOMS:

• More productive per Square Mt, less factory space!!
• Servo Motor for warp beam.
• Servo Motor for Pick control.
• Digital warp sensor controlling up to 30 denier warp denier.
• Automatic start and weft fixer.
• 50% less operator vs mugrip.
• Lower energy cost vs small loom of 1 Mt.
• Guaranteed Low weaving defects! and jaquard mistakes.
• Staubli Jaquard is the Leader in the tecnology.
• Jaquard will not need to use floppy-can be sent directly via IP to the loom.
• Labels ready from the loom due professional thermofixing.

CHARACTERISTICS:

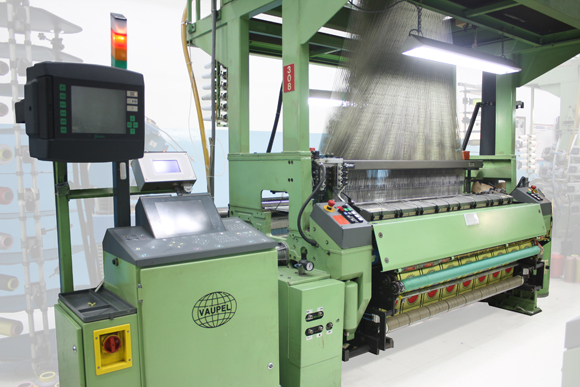

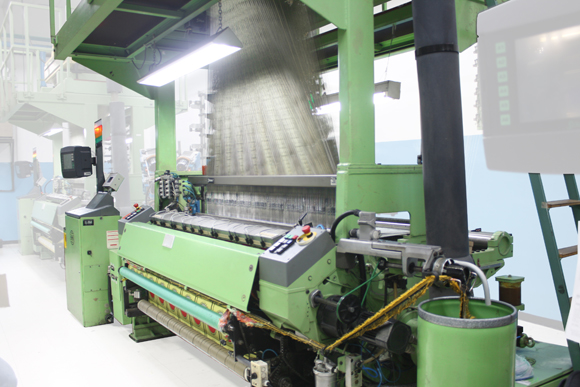

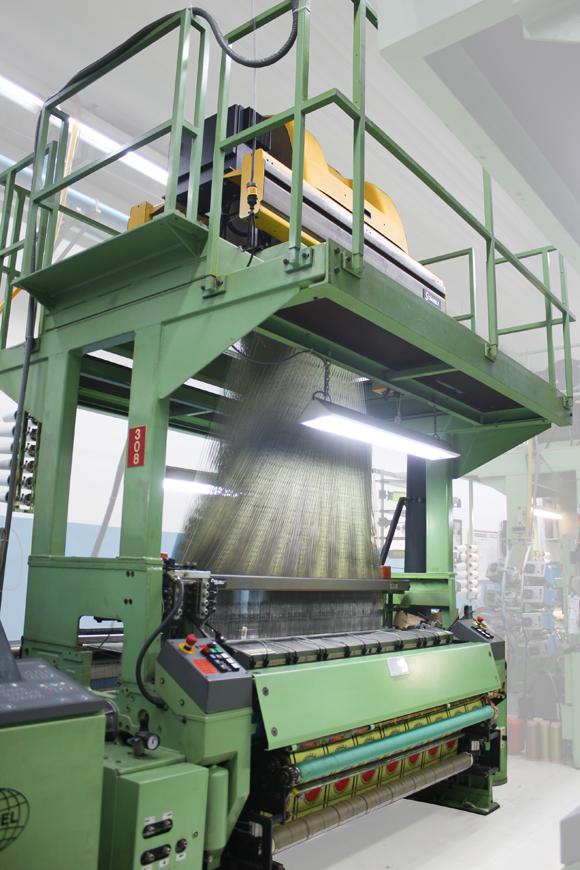

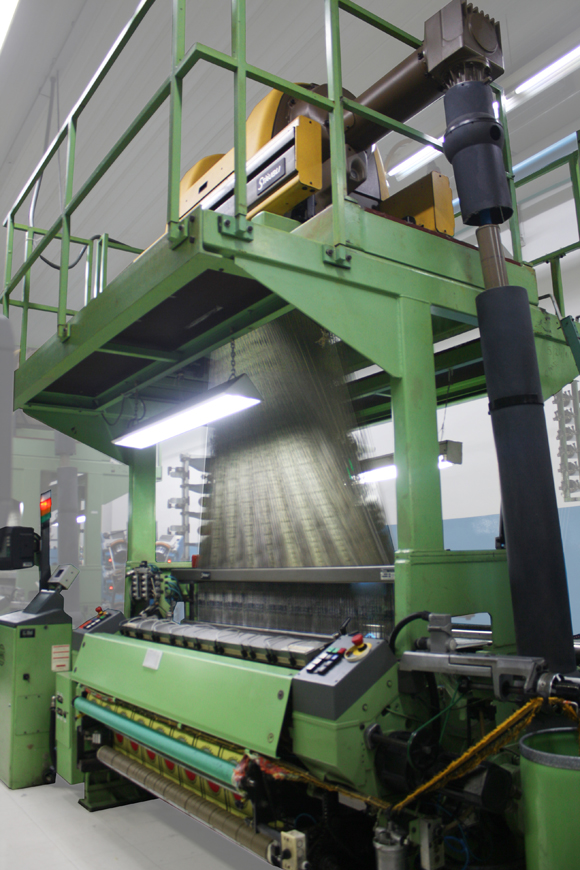

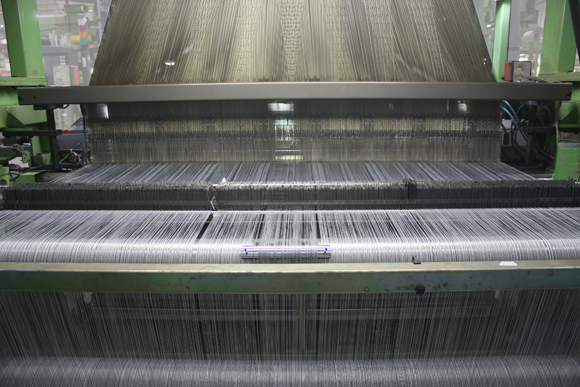

• Weaving System: Air Weaving Machine
• Base Loom: AWS/ AWV 8/J 8 Colours
• Weaving Width: 168 cm

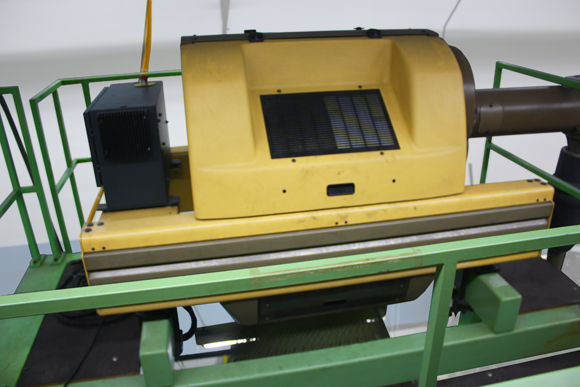

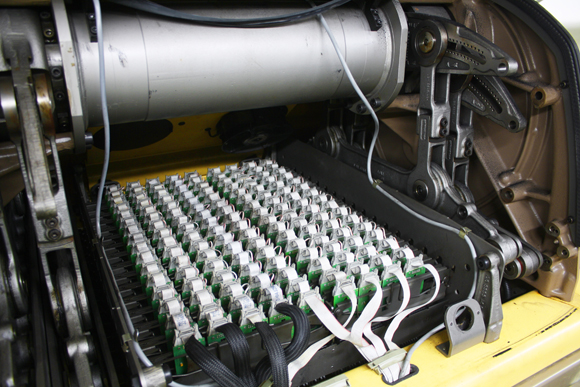

• Jacquard Staubli LX1600

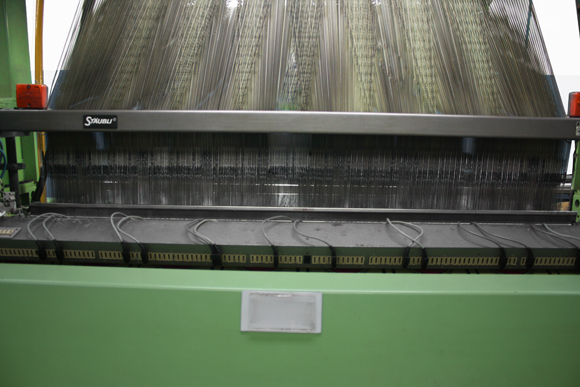

• Harness: Taffeta, 8 x 1152, @ 211 mm

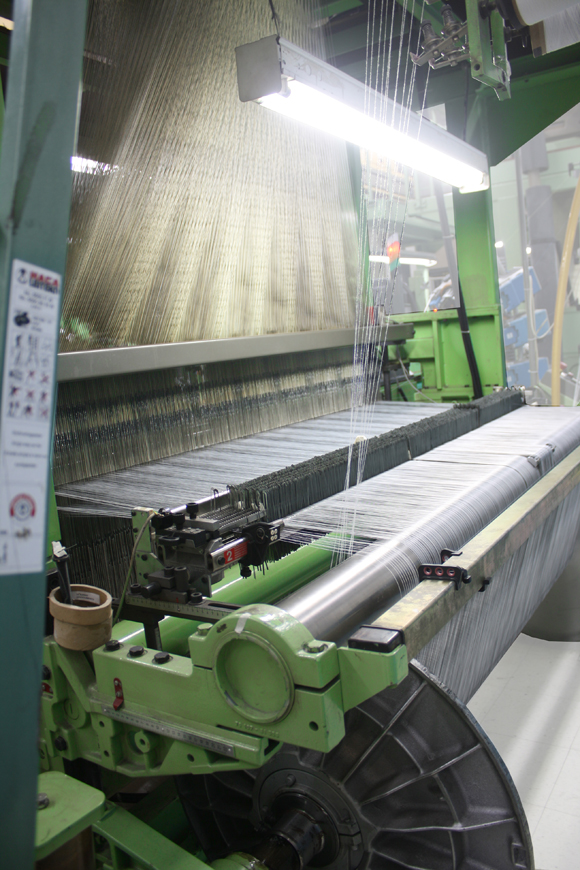

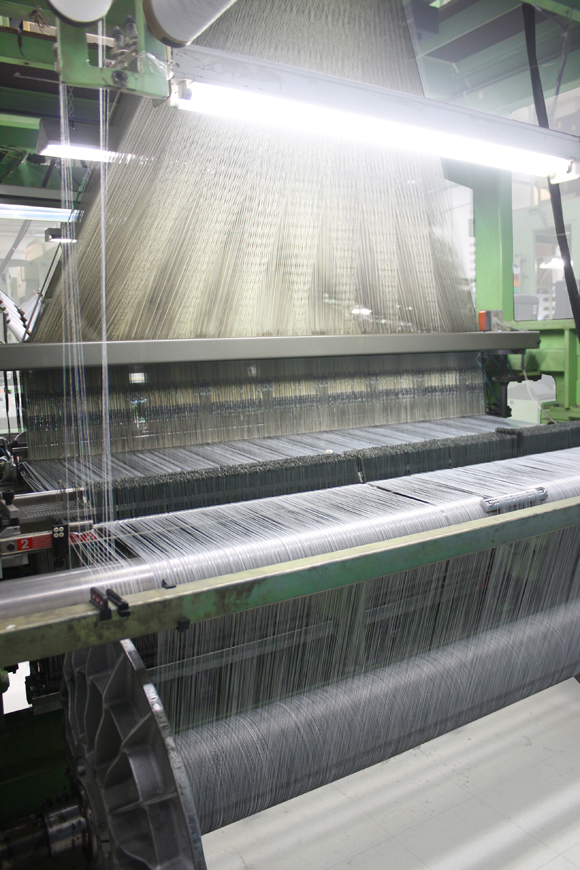

• Warp: Polyester 70 - 100 den
• Warp Density: 54.6 - 109,2 ends per cm
• Weft Material: Polyester 50 - 200 dtex
• Weft Density: 20 - 60 picks per cm
• Speed: 950 / 800 Schuss/picks
• Cutting System: SCU2/SEL
• Cutting Control: MCD-2 (color touch screen display) Label localizer in combination with MCS (Modular Cutting System)
• Year of Harness: 2004
• Year: 2001
• Harness: Taffeta, 8 x 1152 @ 211mm
