WOVEN LABEL LOOMS

MACHINE
MODEL
SERIAL
HARNESS TYPE
YEAR
to request a full length detailed video, click here

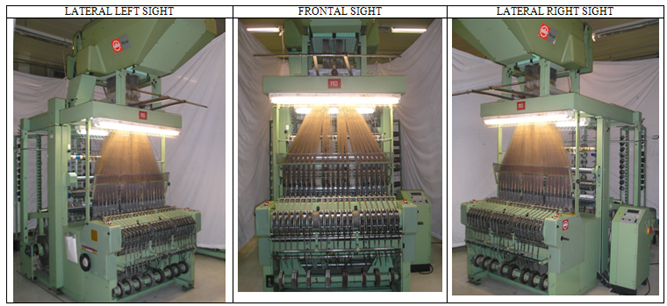

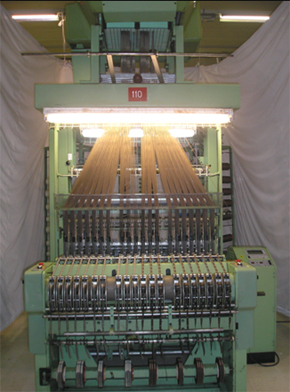

#110
MVC2-200
AN-95.30326A
Taffeta
1996

CHARACTERISTICS

•   Hooks 768/524
•   DIGI-KAST Electronic Warp Let-Off Control
•   Jacquard Machine Mueller
•   Type: Taffeta
•   Welf Density 28PPC
•   Magnet Cards: 17
•   Springs Harness
•   Thermo Fixation Devices With Electronic Control
•   Mudata Display Version 4
•   Motor Breaker With Slow Motion
•   Control Cabinet
•   One Warp Beam
•   Sensor Regulator
•   Supply Voltage 3X220V
•   Frecuency 60HZ
•   Loom Will Be Shipped With Yarn Drawn-In (Warp With 2,160 Threads)
•   Speed up 1100RPM
•   Number Of Repetitions 20
•   Mamimum Width Repetition 24MM
