CHARACTERISTICS


•   Hooks 768/384
•   Digi-Kast Electronic warp let-off control

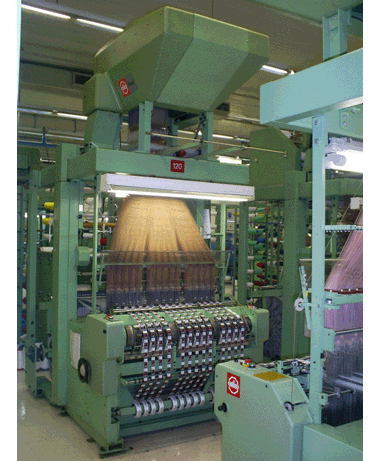

•   Jacquard machine Mueller-bonas
•   Model MVC2-200 - Year 1997
  1. Type (Full Satin)
  2. Weft density 36 PPC
  3. Magnet cards 17
  4. Springs harness
•   Thermo fixation devices with electronic control
•   Mudata display version 4
•   Motor breaker with slow motion
•   Control cabinet
•   One warp beam
•   Sensor regulator
•   Supply Voltage 3x220 V
•   Frequency 60 HZ
•   Loom will be shipped with yarn drawn-in (warp with 4.800 threads)
•   Speed: up 1100 RPM
•   # of repetitions 15
•   Maximum width repetition 30 mm
