CHARACTERISTICS

•   Hooks 768/2x176
•   Digi-Kast Electronic warp let-off control

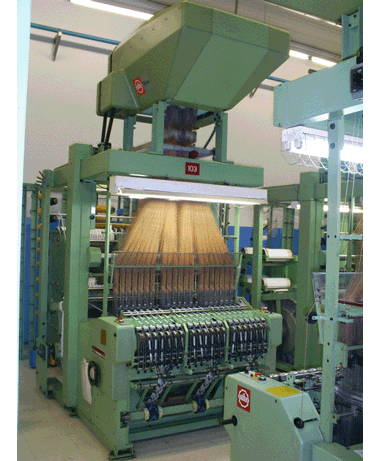

•   Jacquard machine Mueller-bonas
•   Model MVC2-200 - Year 1997
    1. Type (Tafetta)
    2. Weft density 28 PPC
    3. Magnet cards 34
    4. Springs harness
•   Thermo fixation devices with electronic control
•   Mudata display version 4
•   Motor breaker with slow motion
•   Control cabinet
•   One warp beam
•   Sensor regulator
•   Supply Voltage 3x220 V
•   Frequency 60 HZ
•   Loom will be shipped with yarn drawn-in (warp with 2.720 threads)
•   Speed: up 1100 RPM
•   # of repetitions 20
•   Maximum width repetition 24 mm
